Brent Mason Wiring Diagram
April 17, 2020

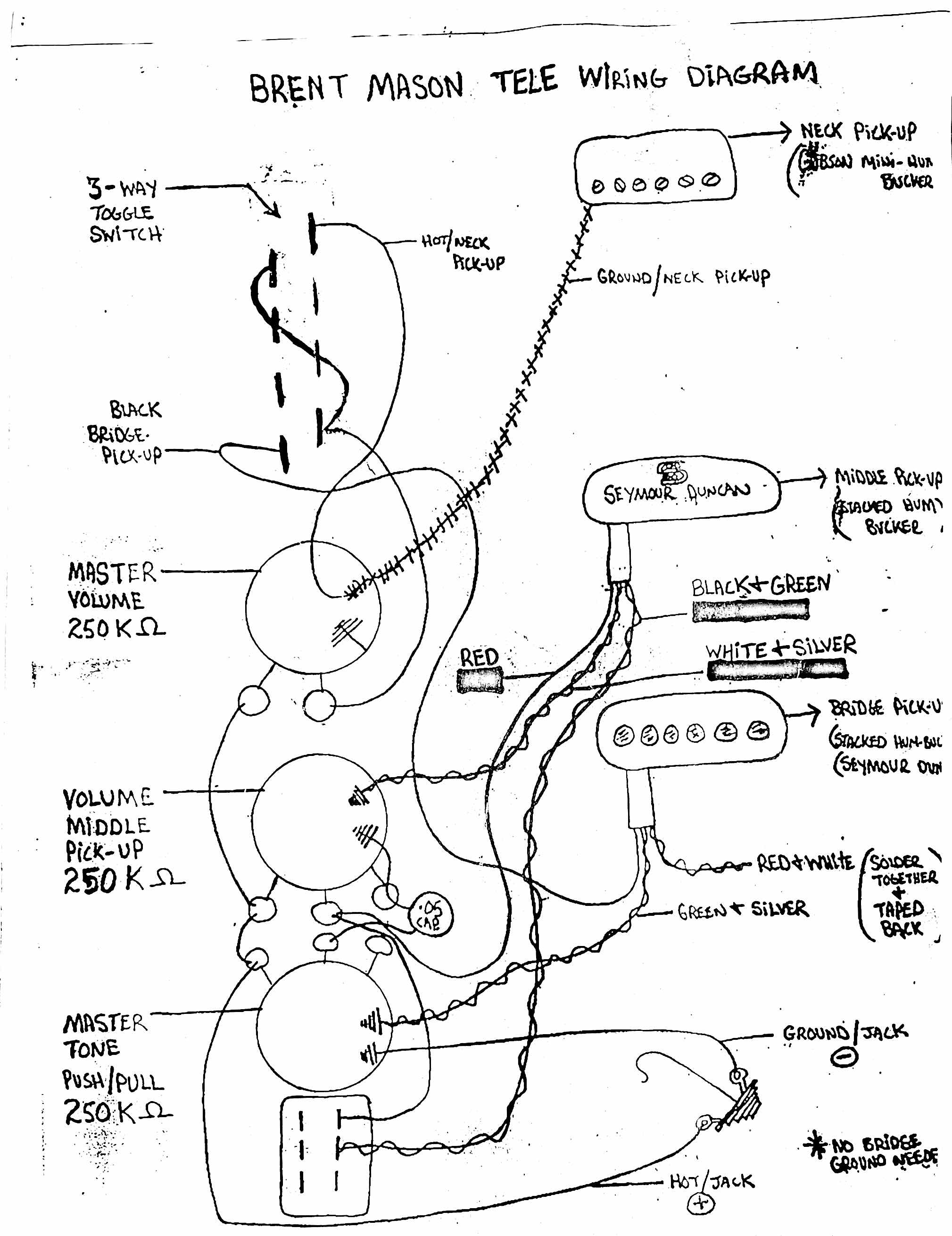

The following is a wiring diagram that I found in my archives. I scanned it, and here it is. This may not be what Fender is using, but may be what was used in the Valley Arts version.
